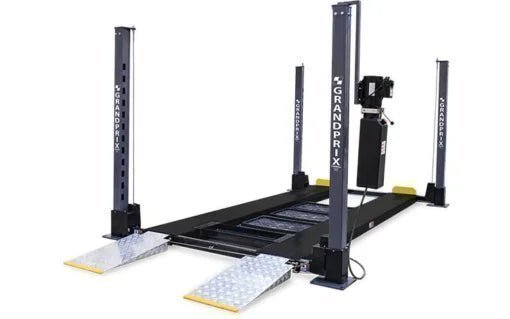

GP-9F Package (5175254) 9,000-lb. Capacity

$719.10 USD

Free Shipping
30-Day Returns
Secure Checkout
Description

Description

  • BendPak’s proven legacy gives you an edge in performance, service and cost of ownership.
  • Designed to be fastened to the floor or free-standing.
  • Comes standard with caster kit, drip trays, mobile jack tray, aluminum approach ramps, and hardened steel tire stops.
  • Boxed-steel columns are made from structural 4.75″ x 4.75″ welded steel tubing.
  • Columns feature 12″ x 12″ baseplates 5/8″ thick.
  • Manual dead bolt locks are reliable and safe and are machined directly into the boxed-steel columns.
  • 3/4″ thick steel safety locks are spring loaded for automatic and solid engagement.
  • 13 positive locking positions are spaced every 4 inches.
  • Secondary slack-cable lock system assures instant back-up safety lock engagement in the event of a cable failure.
  • Exterior steel sleeves with UHMV slides surround each column to ensure positive contact and containment.
  • ¾” thick safety locks are securely trapped by the full-perimeter cross tube sleeves and can’t become dislodged or disengaged.
  • Welded-steel runways feature utility rail for jack tray and drip trays and other accessories.
  • Runways are welded and boxed for extra strength.
  • Built-in flow restriction integrated into the hydraulic cylinder to prevent free-fall.
  • Oversize baseplates and pull-perimeter cross tube sleeves reduce lateral movement and sway when lift is free-standing.
  • Low-profile runways are only 5″ high to accommodate low ride-height vehicles.
  • Hardened steel safety lock linkages use 3/8″ molded carbon steel rod ends to reduce flex and twist to ensure positive locking and smooth operation.
  • Precision, reinforced rod ends with spherical bearings are protective coated for corrosion resistance and are designed to provide low friction and high wear resistance.
  • 5/8″ thick top caps.
  • Sheave axles feature hardened steel collars and snap rings.
  • Pull out tire stops on both ends of the lift that allows drive through capability.
  • Stainless steel lifting cables are rated to handle over 14,000 lbs. each.
  • Cable keepers assures cables remain safely secure to the sheaves.
  • Pre-assembled cables simplifies installation.
  • 36″ aluminum approach ramps are gusseted to eliminate flex and bending.
  • Non-marring heavy-duty poly caster wheels will not damages painted floor surfaces.
  • Durable powder coat finish.
  • 3/4″ runway bolts provide positive attachment with increased safety factor.
  • Operator controls are simple to use, well-placed and ergonomically advanced to reduce operator strain and fatigue and increase safety.
  • Electric/hydraulic power system.
  • Single hydraulic cylinder underneath runway.
  • Optional full-length aluminum platforms can be added to easily store lawnmowers, ATVs, jet skis or motorcycles.

Capacity

Lifting Capacity*
9 000 lbs. (4 082 kg)

*Max Capacity / Front Axle
4 500 lbs. (2 041 kg)

*Max Capacity / Rear Axle
4 500 lbs. (2 041 kg)

Rise

A – Min. Runway Height:
5″ (127 mm)

B – Max. Rise:
70″ (1 778 mm)

C – Max. Lifting Height:
75″ (1 905 mm)

Time to Full Rise:
45 seconds

Outside Dimensions

D – Overall Width:
114,5″ (2 908 mm)

E – Outside Length:
176,5″ (4 483 mm)

F – Overall Length:
203″ (5 156 mm)

G – Height of Columns:
89″ (2 261 mm)

Inside Dimensions

H – Width Between Columns:
98″ (2 489 mm)

I – Drive-Thru Clearance:
86″ (2 184 mm)

Runways

J – Runway Width:
18,75″ (476 mm)

K – Length of Runways:
165,5″ (4 204 mm)

L – Width Between Runways:
37,5″ (953 mm)

M – Runway Centerline:
53,75″ (1 365 mm)

N – Outside Edge of Runways:
72,5″ (1 842 mm)

Minimum Wheelbase

Rated Capacity:
115″ (2 921 mm)

75% Capacity:
100″ (2 540 mm)

50% Capacity:
85″ (2 159 mm)

25% Capacity:
70″ (1 778 mm)

Locking

Locking Positions:
13

Lock Spacing:
Every 4″ (102 mm)

Power Unit

Motor:
STANDARD: 110VAC, 50-60HZ, 1PH, 20A or OPTIONAL: 208-230VAC, 50-60HZ, 1PH, 25A

Noise:
45 dB

Shipping

Weight:
2,224 lbs. (1008.8 kg)

Dimensions:
166″ x 22″ x 43″ (4,203 mm x 4,203 mm x 1,092 mm)
